modèle

FTL4C1QE1C

Description Description

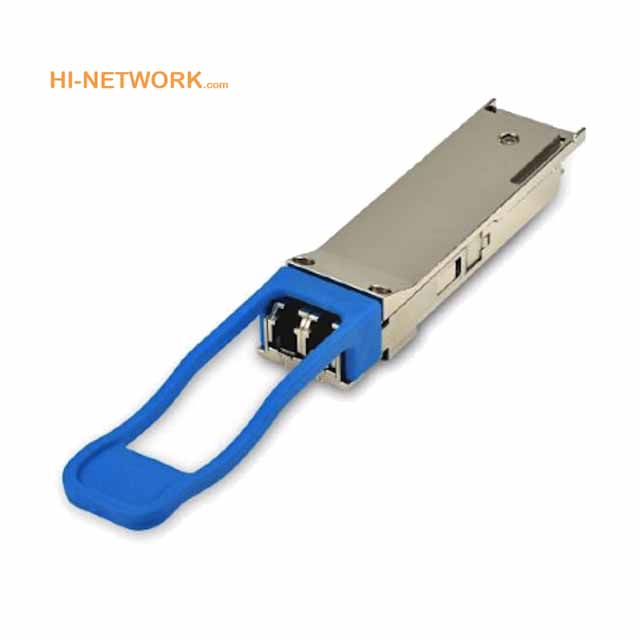

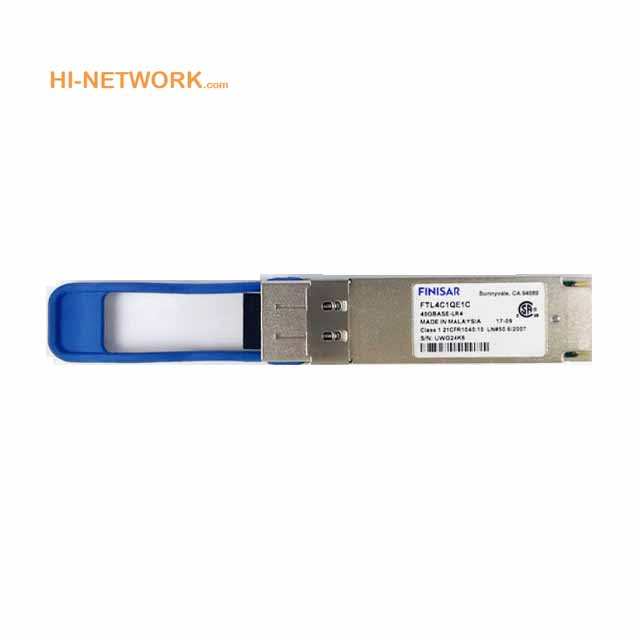

FTL4C1QE1C Finisar 40GBASE-LR4 40Gbps QSFP+ Fiber Transceiver 40 G 10 Km Optic Fiber

Type de média:

Single-Mode Fiber (SMF)

Longueur d’onde TX:

1310 nm.

Type d’émetteur-récepteur:

QSFP

RX Wavelength:

1310 nm.

Minimum Optical Budget:

9.7 dB

Distance maximale:

À 10km

Taux de données pris en charge:

39.81 – 44.8 Gbps

Applications prises en charge:

40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps)

DDM/DOM:

Pris en charge

Plage de température:

Standard 0°-70°C

Connecteurs:

Double LC

Tx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331))

Rx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13nm (1271, 1291, 1311, 1331))

Minimum Transmitting Puissance:

Each Lane -4 dB

Maximum Transmitting Power:

Each Lane 2.3 dB

Receiver Sensitivity:

Each Lane -13.7 dBm

Receiver Overload:

Each Lane 2.3 dBm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+3.3V alimentation unique

Chipset:

MAXIM, MINDSPEED, SEMTECH, UX

Conformité:

802.3ba 40GBASE-LR4, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8438i, QSFP+ MSA, RoHS, SFF-8436
